Smart Compact Desktop Manual Flip Up Power Outlet with Brushed Cover for Office Furniture
Introduction:
As the development of modern technology, people have higher requirements for intelligent office. Safety and saved space is the most important request of the tabletop socket.
BB series desktop brushed flip socket box is a office table smart multi-functional power solutions. It is consist of data and power modules depend on its modular design. All connection plugs are hidden via a brushed cover panel and under the tabletop. User just flip the panel up to connected the ports and flip the panel down to prevent get shock. It’s based on the modular design with some AV module and power module including 3.5 Audio, Video, Audio R&L, VGA, HDMI, USB, Network etc..
Application:

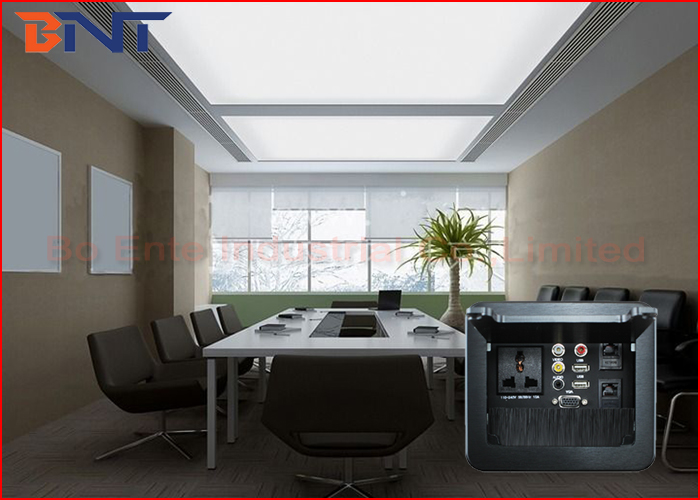

This tabletop manual flip up socket is multiple used in the high-class office table, conference room table, school lecture hall, office / school training room, hotel and the AV equipment room.
Feature:
1. Easy installation, just cut out a square hole and install the socket on the table directly
2. Panel is flip-up design with brushed cover, a variety of signal can be easily use
3. Save more space,after using you can close it with the cover panel to keep it anti-dusty
4. With high quality aluminum alloy 5mm panel thickness aluminum panel surface, not easy to bend elegant fashion, simple appearance not easy to grind flower
5. Anode oxidation process, anti-scratch, anti-dusty and anti-rust, upscale elegance
6. Safety design, anti-electric shock when the connection panel hidden under table after used
7. Modularization design, all connection ports can be change easily, high flexibility
8. Round corner design, protect user be scratched by the surface corner
9. Using advanced connection interface, the panel is smooth
Selling point:
1. Cable management type or modular type can be select accordingly
2. The bottom connection ports can be supply with welding or female and the connection outlets can be changeable accordingly
3. Changeable combinations, modules can be customized as request accordingly
4. Sample order and customized made is available
5. OEM/ODM and logo paste on the outside box carton is available
6. Top panel color is available with black, silver and the gold is based on the quantities.
Specification:
| Items | BB301 |
| Style | Brushed cover manual flip up |
| Catalogy | Tabletop hidden socket box |
| Material | Aluminum alloy + steel |
| Application | Commercial / General-purpose |
| Usage | Office table, conference meeting room, hotel |
| Panel process | Aluminum alloy wired drawing + anode oxidation anti-rust process |
| Bottom plate | Welding |
| Color | Black |
| Corner | Round corner |
| Panel thickness | 5mm |
| Panel size | 145mm * 130mm |
| Cutout size | 131mm * 116mm |
| Box size | 130mm * 115mm * 78mm |
| Rated voltage | 110V ~ 240V AC |
| Rated current | 10 ~ 13 Amp |
| Frequency: | 50 / 60 Hz |
| Operation Temp. | -20°C/ + 50°C |
| Connection power | 1* Universal standard power outlets (other standard outlets is available) |

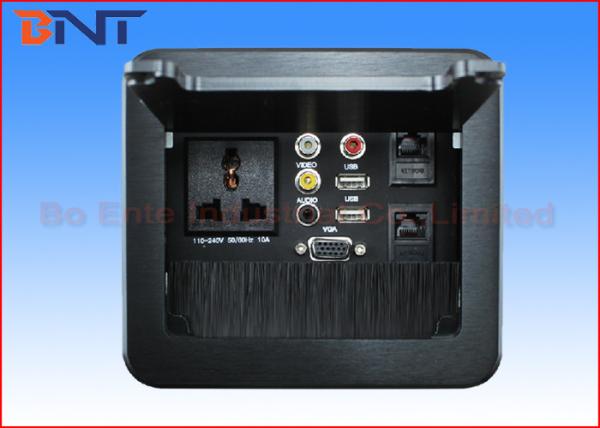

| Configuration | 1* RJ45 + 1* VGA + 2* USB + 1* 3.5 Audio + 1* Video + 1* Audio R&L |
| OEM / ODM | Available |
| Warranty | 12 month |
| Customized selection | VGA / HDMI / USB data / USB charger / Network RJ45 / Telephone RJ11 / 3.5 Audio /Dual 3.5 Audio / Power switch / 6.35 speaker / Video / Dual Audio / Microphone Canon /Universal plug / Eurpe standard plug (EU) / British standard plug (UK) / American standard plug (US) Australia standard plug (AU) / South Africa standard plug (SA) / France plug / German plug Italy plug / Chile plug or other plug |

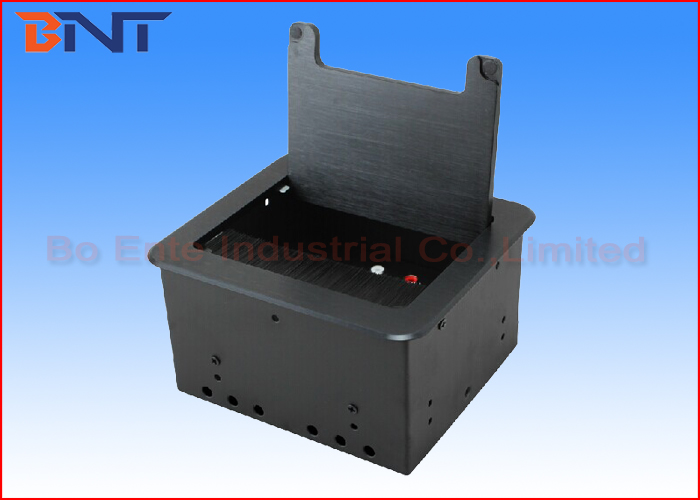

Product Pictures:
